SIEMENS 1FT6086-8SF71-4AB1
Category: Motors-AC Servo

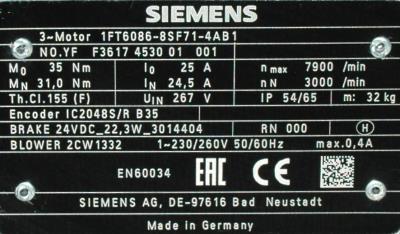

Product Images
| Description | 1FT6086-8SF71-4AB1 is a Motors-AC Servo produced by Siemens | |
| Motor Type 1 | Electric motor | |
| Motor Type 2 | Synchronous motor | |
| Motor Type 3 | AC Servo Motor | |
| Series | 6 | |
| Frame Size | 08 | |
| Length | 6 | |
| Number of poles | 8 | |
| Cooling method | Force-ventilated with mounted separately-driven fan | |
| Rated speed | 3000 rpm | |
| Dc link voltage | 600V | |
| Type of construction | IM B5 (standard) | |
| Connector outlet direction | axial DE (For 1FT6062, only in conjunction with the water connection either at the side or below) | |
| Encoder system | Sin/cos incremental encoder 1 Vpp (without DRIVE-CLiQ interface) | |
| Shaft end | With key (radial eccentricity - N, with holding brake) | |
| Vibration severity grade and Degree of protection | N, IP65 |
| New: | Contact us for price |
| Refurbished: | Contact us for price |
| Repair: | Contact us for price |
| Exchange: | Contact us for price |
